Process Temperature Control Rings
Higher quality products and lower costs through improved, reliable fifiring control
Take control of your fifiring process
In the manufacture of ceramic products, few things are as critical as accurate control of the fifiring process.
After all, the results have a direct effect on the quality - and the costs - of the fifinal product.
Optimal fifiring control requires both accurate measurement of the heat treatment - the temperature and its effect over time - together
with the ability to control the temperature and the uniformity of its distribution throughout the kiln.
Effective temperature measurement is the key to guaranteed product quality
Most conventional temperature measurement techniques are limited both in time and in location.
For example, the thermocouples generally used in the ceramic industry do not measure the temperature of the product itself,
but that of its vicinity. They are also limited to measuring radiated heat, and take no account of heat transferred from kiln furniture.
About Ferro Ferro is almost everywhere you look—in fact, the computer you’re using now probably contains our products on its circuit boards.
From your mobile device to your car to your coffee cup, our materials provide strength, beauty, protection or specific performance characteristics to products you enjoy and depend on every day.
To help you learn more about our company, visit the navigation index to the left of this page. We’ve provided an overview of how we operate and our growth vision, a recap of our history, a useful matrix of the application and geographic markets served by our businesses, and information about our management team and Ferro's commitment to social responsibility. |

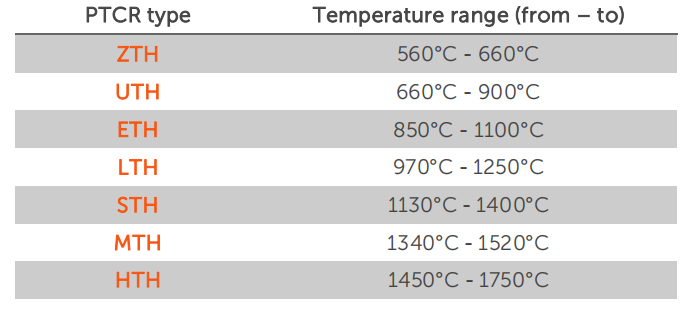

FERRO Process Temperature Control Rings 560~1750℃ Ptcr A PTCR is a ceramic device that registers the total amount of heat transferred to it.
Because of the advanced technique and materials applied and used for this product,it gives a fair representation of the real heating process taking place in a kiln at the location of the ring. PTCR helps to achieve a reliable, outstanding and regular quality level.
The actual set temperature of a kiln during a firing process, as measured by thermocouples,does not give any guarantee of the repeatability of process conditions which of course will harm the quality of the products. A thermocouple merely gives a specific spot temperature,which is not the same temperature as the one at the position of the product. The ultimate temperature of the product is determined by the total transferred heat. This is not measured by the thermocouple. Besides, the same set temperature in different kilns or kiln layouts does not guarantee the same heat treatment. |
Method of use

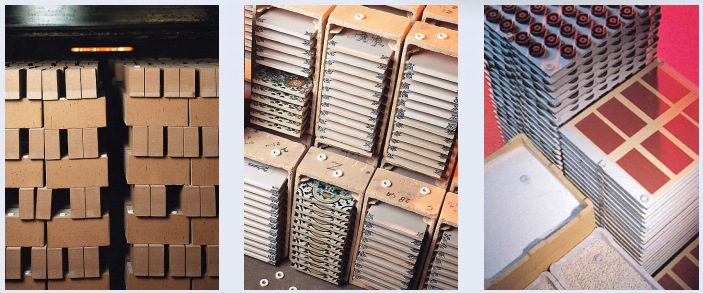

Positioning
PTCR rings can be placed at almost any location in the kiln, on kiln furniture, trolleys or transports.
The use of both multi-location and multi-level positioning is recommended, as this provides the most insight into the heat treatment distribution within the kiln.
Measuring
The contraction of the PTCR diameter reflflects the actual heat treatment at the point where the ring was located in the kiln.
The diameter is easily measured using a PTCR micrometer - only a single measurement is required (as shown).
Converting to ring temperature
The measured ring diameter is converted to ring temperature using the conversion table enclosed in each packing unit.
Each table is specifific to the particular batch of rings, for accuracy and convenience
